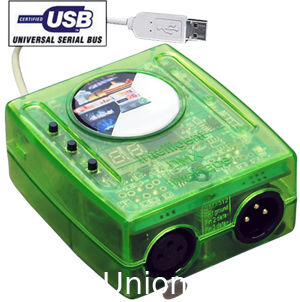

1 USB-DMX signal decoding, support for multiple USB-DMX decoder, stable output.
2 has a standard 2 × DMX512 outputs (1024 channels), using DC / DC power supply isolation and optical isolation.
3 supports the PC to work with offline work mode selection, microcontroller decoding, external random access memory.
4 Accept the DMX512 lighting control console, through the interface into the 3D software control, and computer 3D effects and live synchronization to achieve light synchronization control console video software.
5 computer 3D stage build, and computer 3D scene lighting effects and real-time display synchronized.
6 to synchronize audio and lighting effects make music show can drop in on the timescale bar audiovisual, mobile, lighting effects extend to schedule the start and end times.
7 is equipped with a memory function of the memory, can be "independent kingdoms" mode, able to work independently from the computer.
8 Create your own lighting fixtures to the existing data or information to be modified, all the lighting effects are included (color, pattern, pattern rotation, prism, etc.).
9 built with icons and visual effects program, mouse Point with easy to use.
10 3D lighting effects AVI export.
11 Support windows XP / 2000 / 98se / Vista operating system, automatic identification plug and play.
Very suitable for small and medium sized performances, entertainment, exhibition, LED lighting control / maintenance use.
Software has been updated:
1 standalone mode channel increased to 512
2 independent mode editor, a built-in program to bring up the edit.
Stage 3 3D object shape visible object Recall
The minimum computer configuration requirements:
PC running Windows XP
Processor Frequency: 800 Mhz
256Mb of memory (RAM)
There are 32 Mo of memory, support for Microsoft Direct 3D video card
800 × 600 pixels screen
Recommended computer configuration requirements:
PC running Windows XP
Processor Frequency: 2 Ghz
1 GO Memory (RAM)
There are 128 Mo memory, support for Microsoft Direct 3D video card
1280 × 1024-pixel screen
When working offline USB-DMX decoders external power requirements:
Voltage: 5V DC
Current: no less than 300mA
Polarity: + Center
Recommend the use of CE and UL standard power supply
